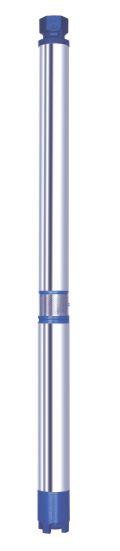

Farmwise brand makes highly efficient durable and best Quality V3
submersible pumpset with water filled motors. Available on both outer diameter of 68mm & 74mm.
Casting Part : Cl FG 200 Suction& NRV : CI FG 200 grade.
Thrust Bearing : Tilting pad self alignment carbon S/S Pump Shaft : Stainless Steel AISI 410
Winding Wire : Multilayer polyester insulated Pump casing : Stainless Steel
Copper : E.C. grade (99.9%) All Hardware : Stainless Steel AISI 304
- Salient Features
- Application
- Material of Construction
- Technical Specifications
- Fully stainless steel stator tube.
- All the diffusers and impellers are glass filled engineer polymer with stainless steel wear rings.
- Rotor supply with Epoxy paint for long life and corrosion free.
- Dynamically balance rotor which give noise less & vibration free operation.
- Light weight & Easy to operate in wide voltage band.
- All parts machined on CNC to set consistent Quality performance.
- Rotor are grinded & burnished to give better surface finish value which ensure long life.
- Can be installed with HDPE/UPVE Pipes.
- Start Easily at low voltage.
- All hardware are stainless steel
- All rubber parts are which NBR
- Domestic water supply-Apartment, Building & Hotel
- Fountains, Canals & Rivers.
- Solar Application
- Domestics water supply.
- Fire Fighting System.
- Unshaped and crossed borewell.
- Replace of hand pump.
Motor Pump
Motor Shaft : AISI 410 Bowl& Impeller : Glass Filled engineered polymer.Casting Part : Cl FG 200 Suction& NRV : CI FG 200 grade.
Thrust Bearing : Tilting pad self alignment carbon S/S Pump Shaft : Stainless Steel AISI 410
Winding Wire : Multilayer polyester insulated Pump casing : Stainless Steel
Copper : E.C. grade (99.9%) All Hardware : Stainless Steel AISI 304
- Head Range : 6 To 109 Meter.
- Discharge Range : 10 to 90 LPM.
- Motor Rating : 0.5HP to 1.5HP, 220V, 50Hz, AC Supply
- Voltage Range : 140V to 240V
